Description
Main features
PROFILE
System provider: Decco

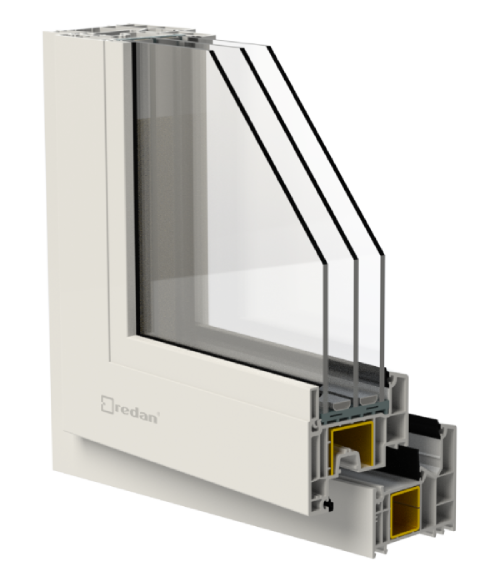

Profile: Decco 84MD
STRUCTURE
Window system
INSTALLATION DEPTH
81 mm, 5-chamber profile
GLAZING
Compatible with glazing up to 53 mm thick.
Standard glazing unit: double-chamber glass with a thermal transmittance coefficient (Ug) of 0.5 W/(m²K), in accordance with PN-EN674.
Optional glass types include enhanced acoustic insulation, tempered, laminated safety glass, burglar-resistant, decorative (ornamental), or solar control glass.
HARDWARE
SIEGENIA TITAN GS fittings come standard with two anti-burglary strikers.
Windows are equipped with a multifunctional corner mechanism that includes a handle misoperation lock, sash lifter, and micro-ventilation function*.
*Availability of micro-ventilation depends on the height of the tilt-and-turn window.
Optional: concealed hinges integrated into the hardware groove.
SEALS
Triple sealing system with a central gasket made from EPDM, available in black or grey.
Standard bottom fitting groove seal available in gold, white, anthracite, or brown.
COLOR OPTIONS
LG decorative foil laminate on a core available in white, anthracite, or caramel.
THERMAL INSULATION
Uw = 0.72 W/(m²K) with steel reinforcement and glazing unit
with Ug = 0.5 W/(m²K), argon-filled, and equipped with a warm edge spacer*.
*Tested on a window size of 1230 x 1480 mm
Warm Edge Spacer: SWISSPACER ULTIMATE
